WLED Controller RGBW/5m/160 Zones Premium Starterkit 24V/FCOB/WS2814 (WLAN)

The first FCOB premium starter kit at cod.m — now available for pre-order.

This starter kit is designed for anyone who wants to get started with high-quality addressable COB lighting without any DIY hassle. Pre-assembled, pre-configured, and ready to use: plug it together, open WLED, and you’re good to go.

What’s included in the kit:

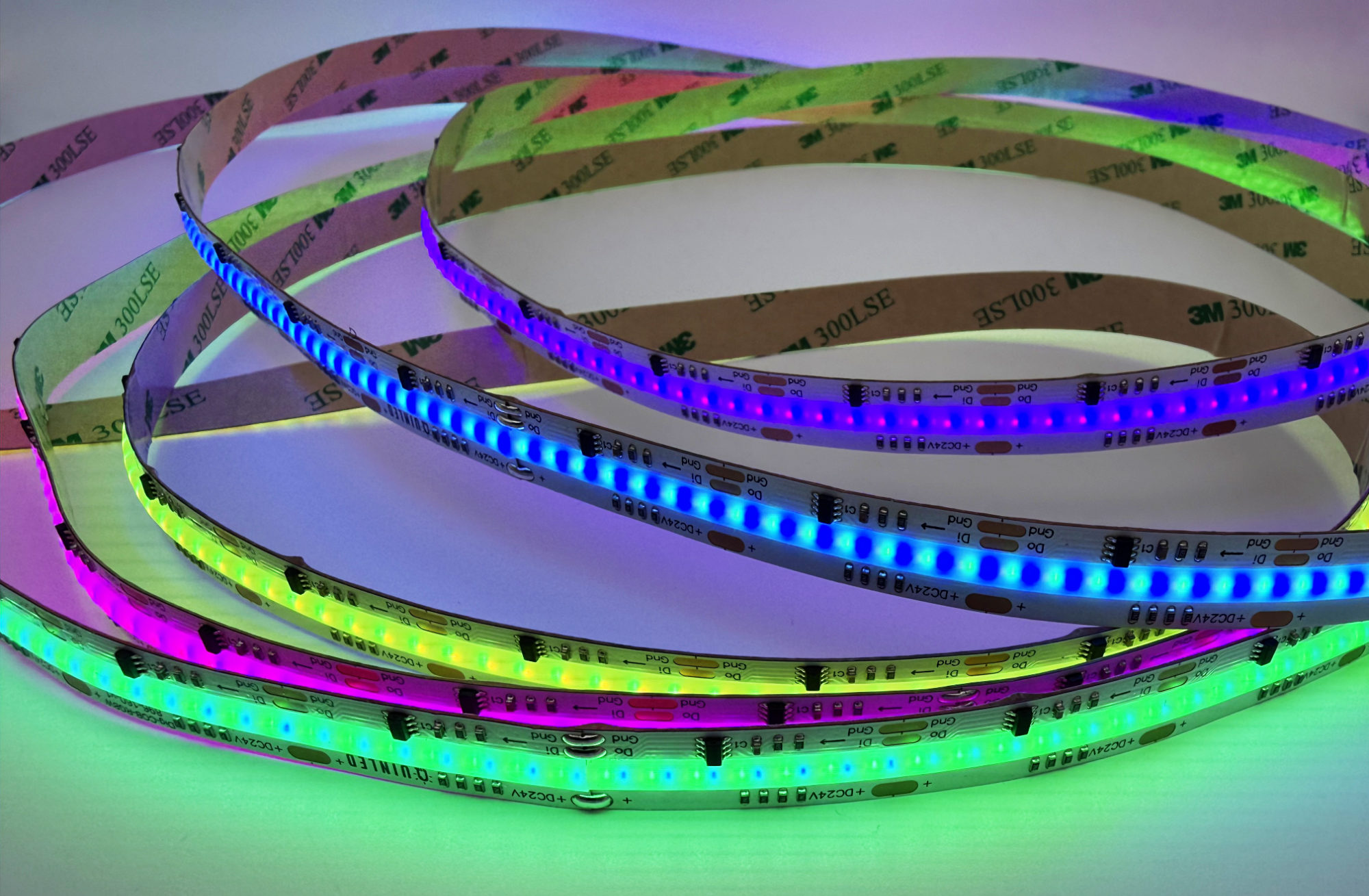

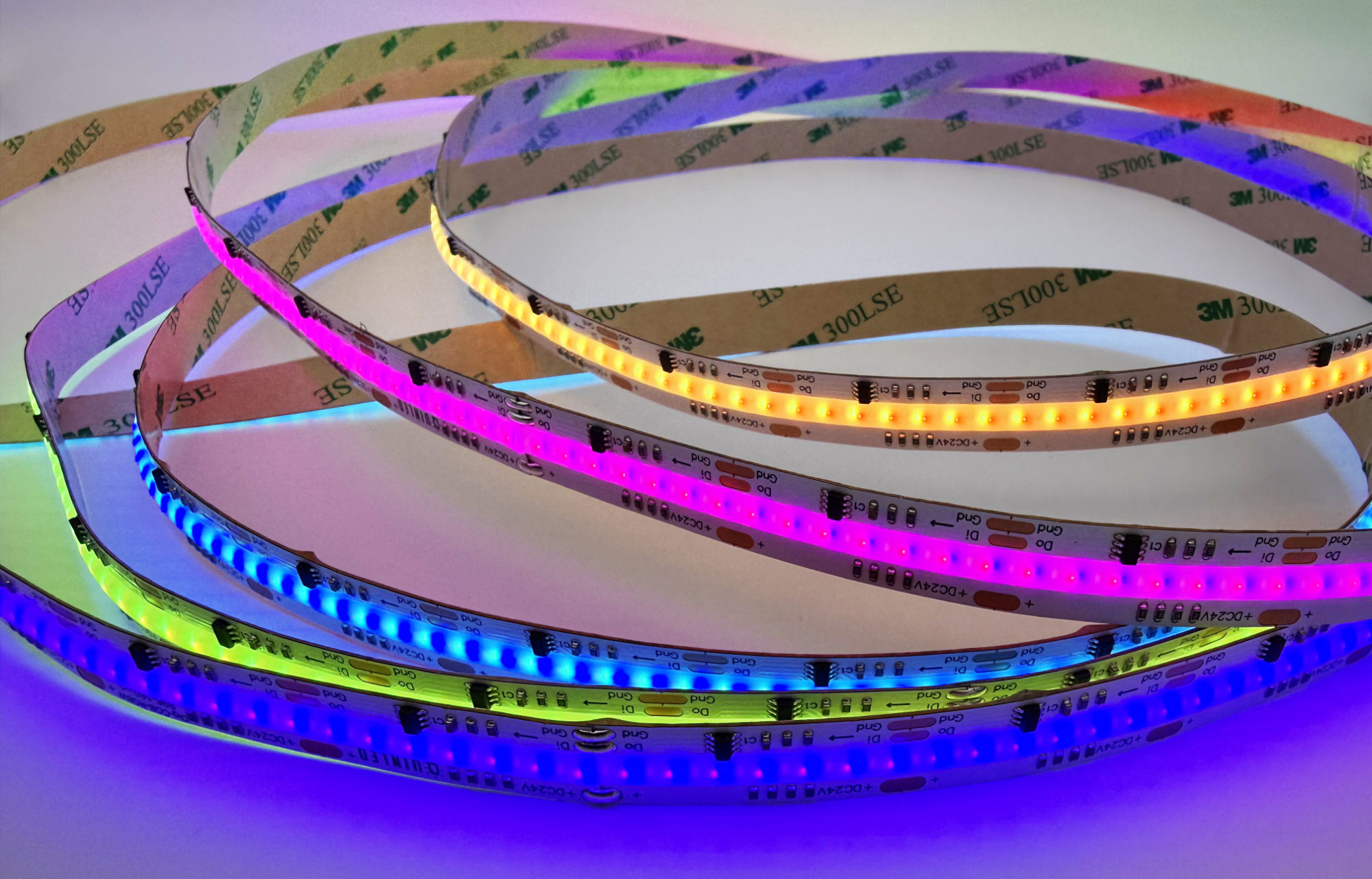

• 5m QuinLED FCOB RGBW LED strip, 24V, 12mm, IP20, Warm white at 3000 Kelvin, 160 individually addressable zones, 896 LEDs/m (224x red, 224x green, 224x blue, and 224x warm white per meter)

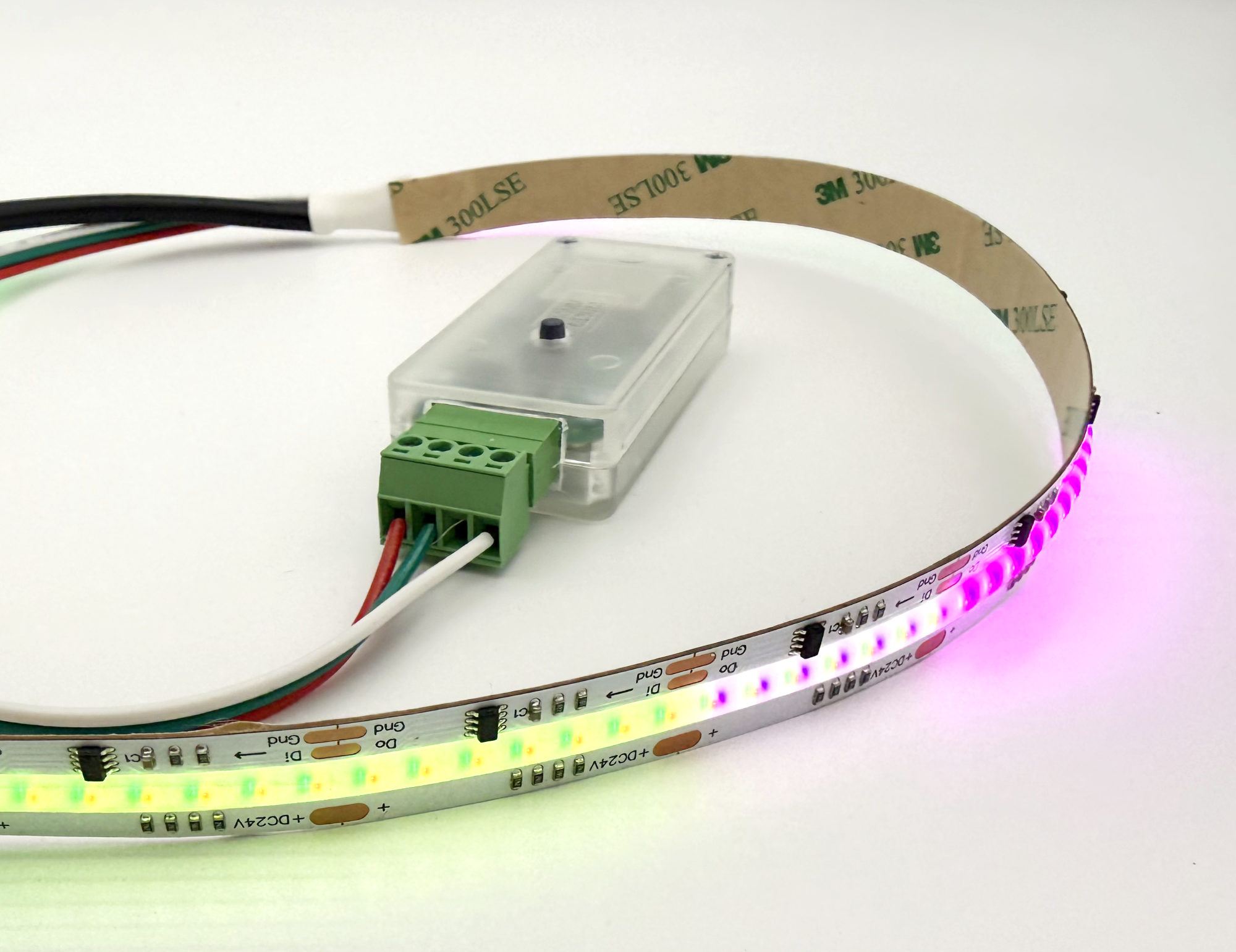

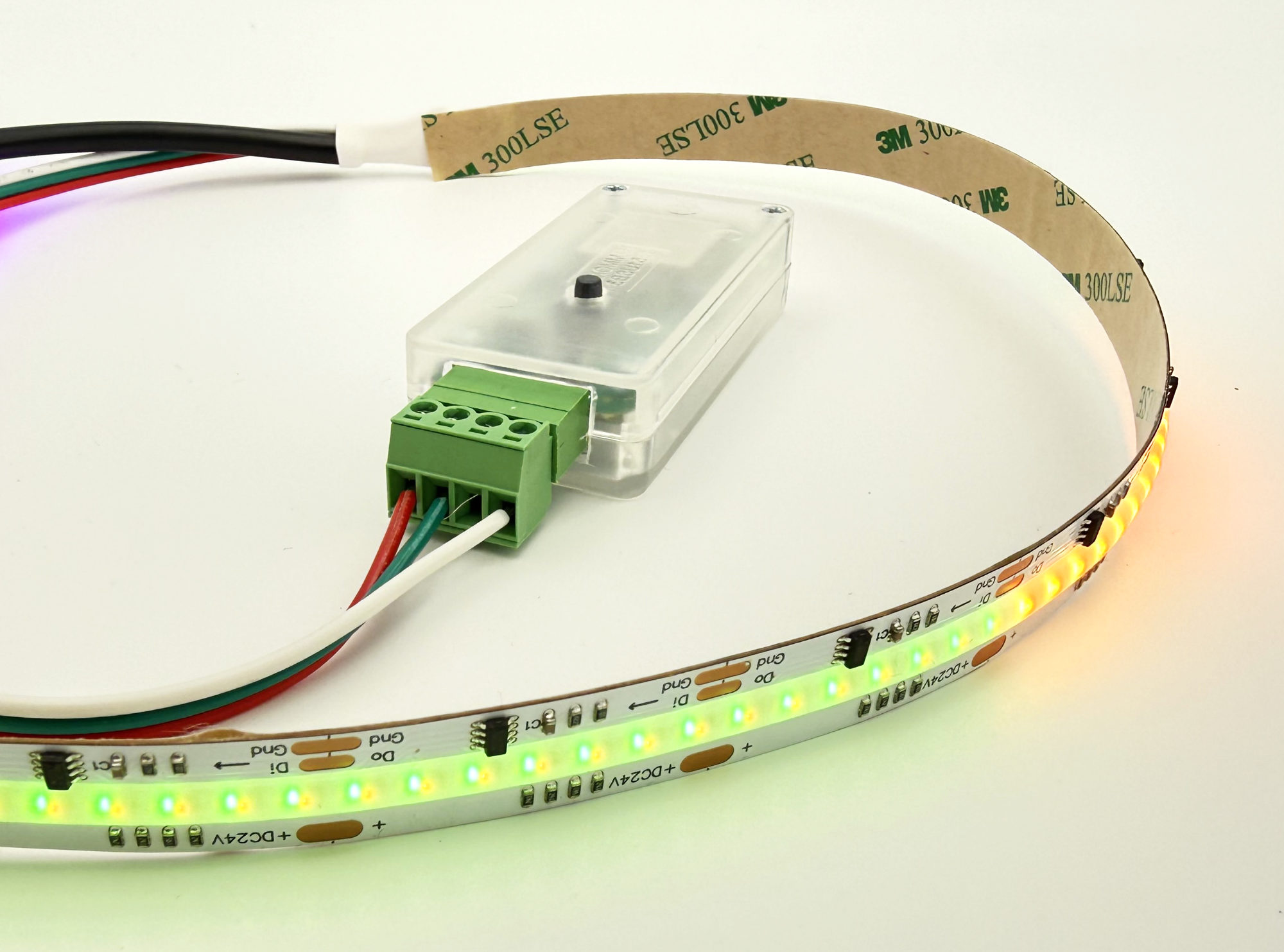

• cod.m WLED controller, fully set up and pre-configured
• cod.m fused capacitor board with 5A fuse
• Mean Well GST90A24-P1M premium power supply (24V / 3.75A)
• 1.5m IEC power cable

Why 160 zones + 896 LEDs/m RGBW is a true premium upgrade

Many FCOB strips in the market operate with around 80 zones over 5 meters and significantly lower LED density. This kit is intentionally designed for maximum resolution and light quality.

Double the number of zones

With 160 individually addressable zones, effects can be rendered much smoother and more detailed compared to classic FCOB strips.

Extremely high LED density: 896 LEDs/m (RGBW)

With 896 LEDs per meter and true RGBW configuration (red, green, blue + warm white), the result is an exceptionally uniform light output.

This provides:

• near seamless light surfaces with no visible structure
• extremely smooth color transitions without banding
• significantly higher detail in animations
• professional-grade lighting even in static white mode

True RGBW color mixing

Thanks to the dedicated warm white channel (3000K), the strip is not limited to RGB effects only. It also delivers high-quality, living-space-ready white light without relying on RGB mixing.

Premium components instead of a DIY setup

• Original QuinLED FCOB RGBW strip
• Mean Well branded power supply
• Protected via fused capacitor board
• Pre-configured WLED controller

Everything is ready to go — no flashing, no soldering, no setup required.

Ideal for

• high-end ambient lighting
• TV and media walls
• indirect ceiling and profile lighting
• smart home / Home Assistant installations
• professional WLED effect setups

Warning

This LED strip is sensitive to short circuits. Please ensure it is not placed or bent in a way that two points on the front side touch each other, as this may damage individual segments.

Pre-order (delivery time approx. 4 weeks)

This kit is currently available as a pre-order.
Components are sourced in batches after orders are placed, with an estimated delivery time of approximately 4 weeks.
