ZigBee Coordinator Case (wall-mount)
Product number:
90820
Product information "ZigBee Coordinator Case (wall-mount)"

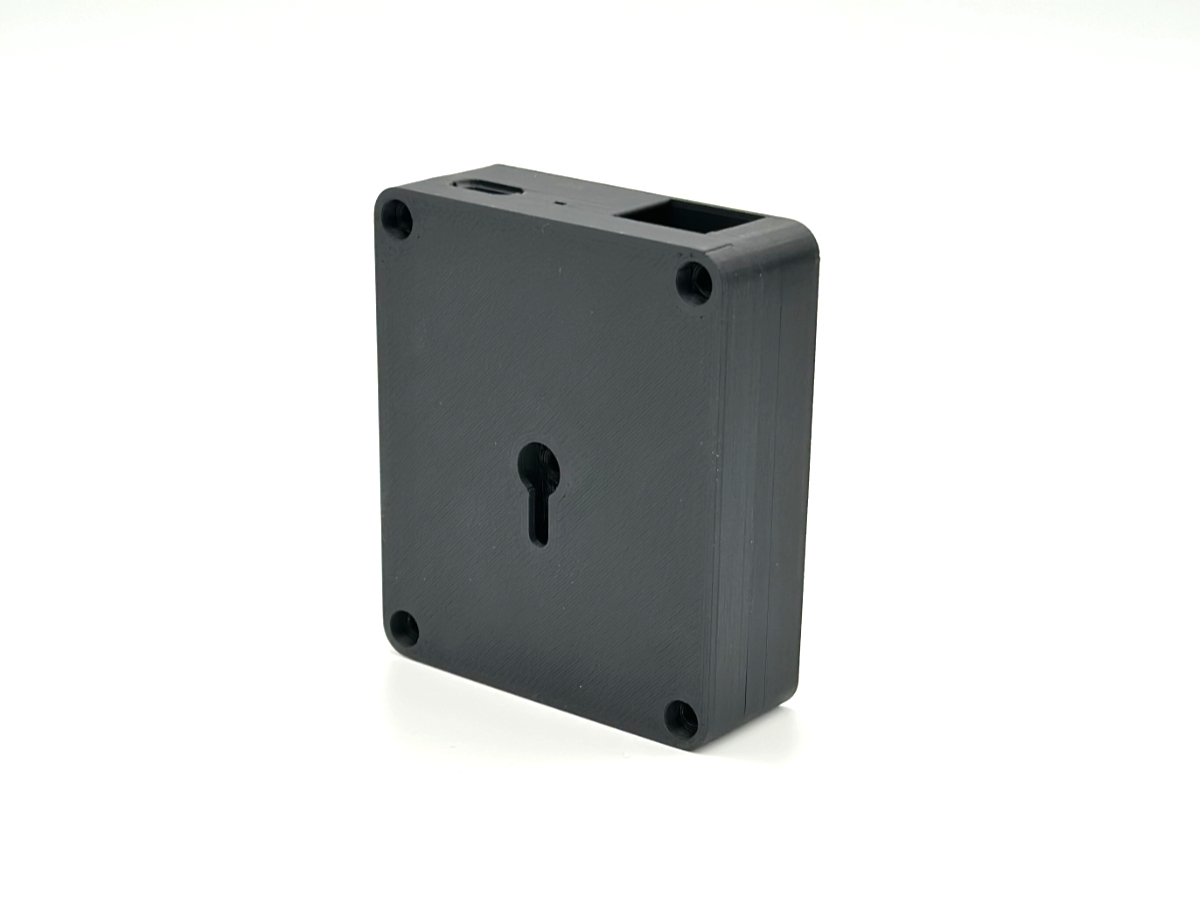

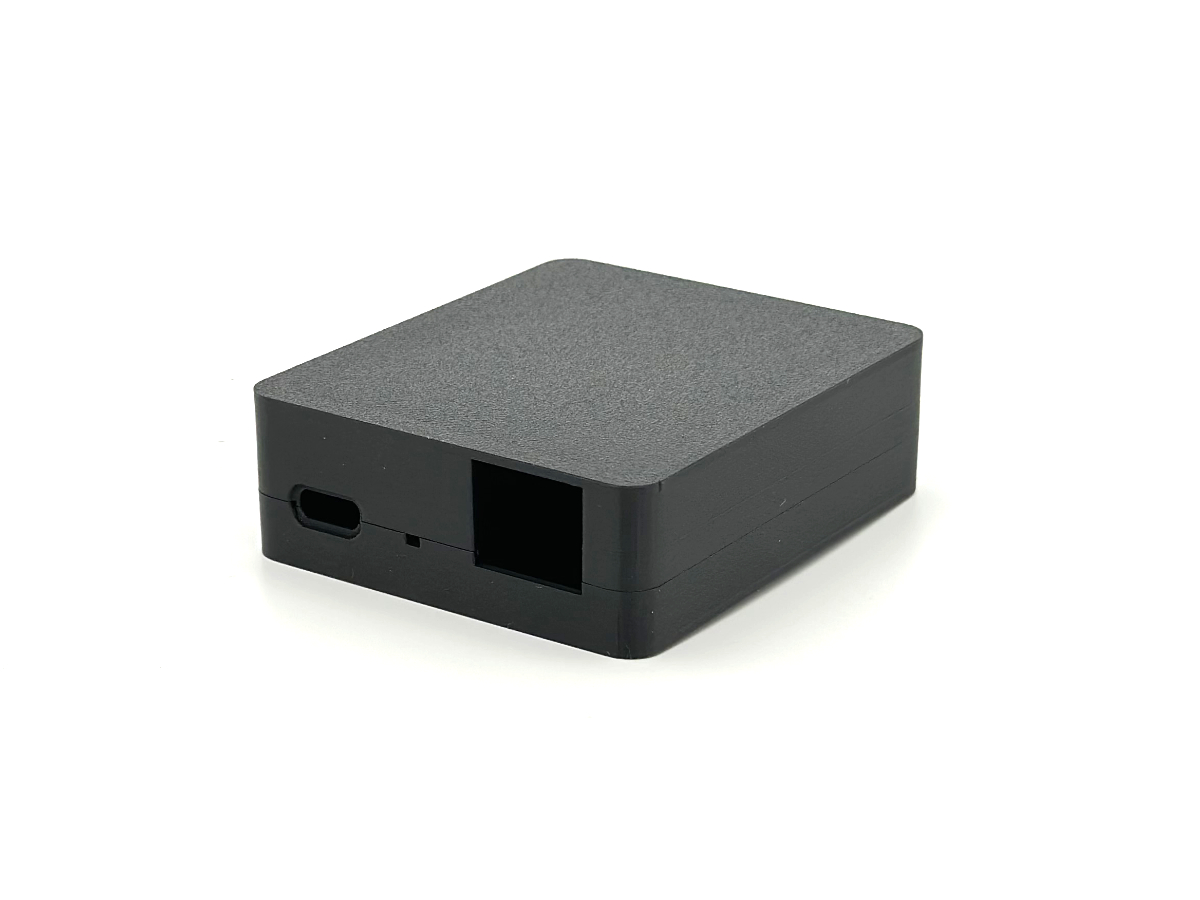

3D-printed housing (black) for the cod.m ZigBee Coordinator (CZC-1.0) for wall mounting

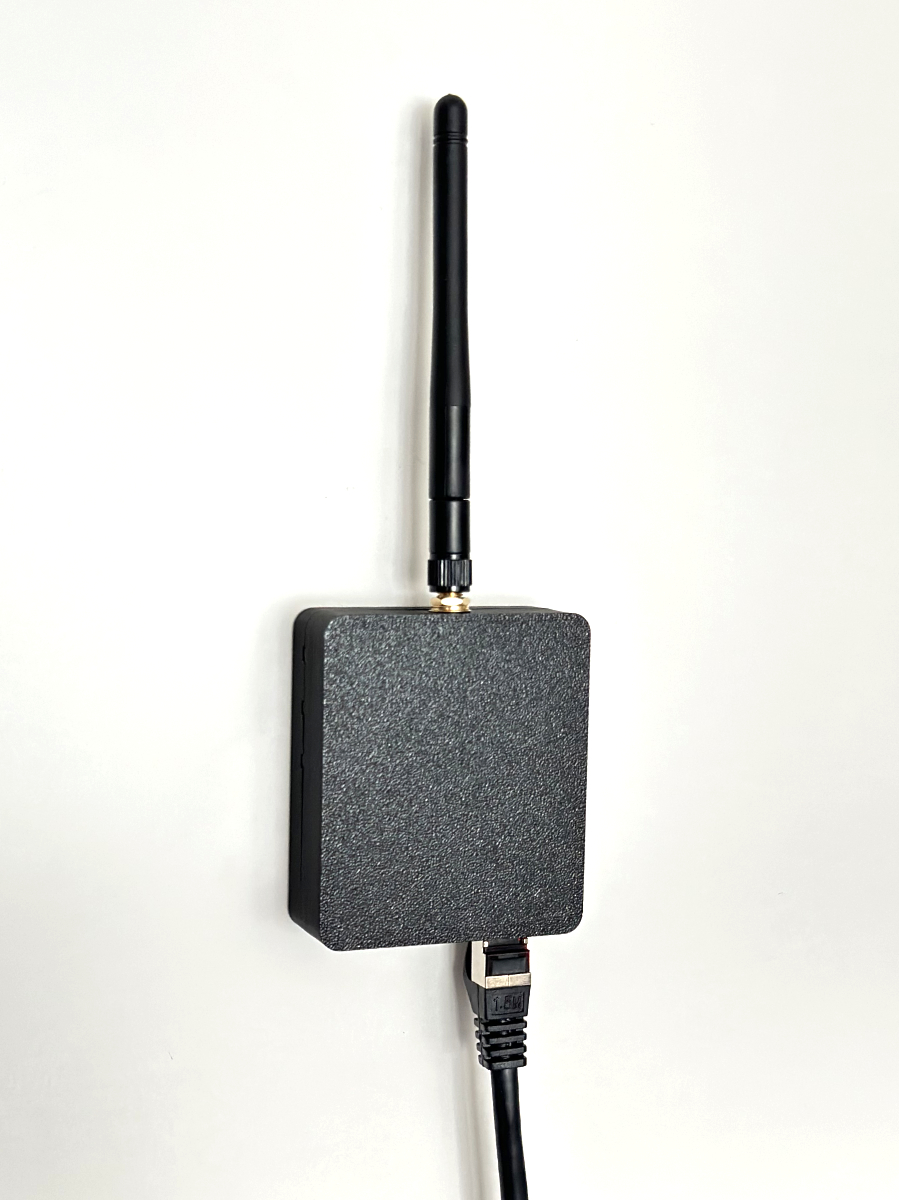

This housing allows you to conveniently mount your existing cod.m ZigBee Coordinator on the wall.

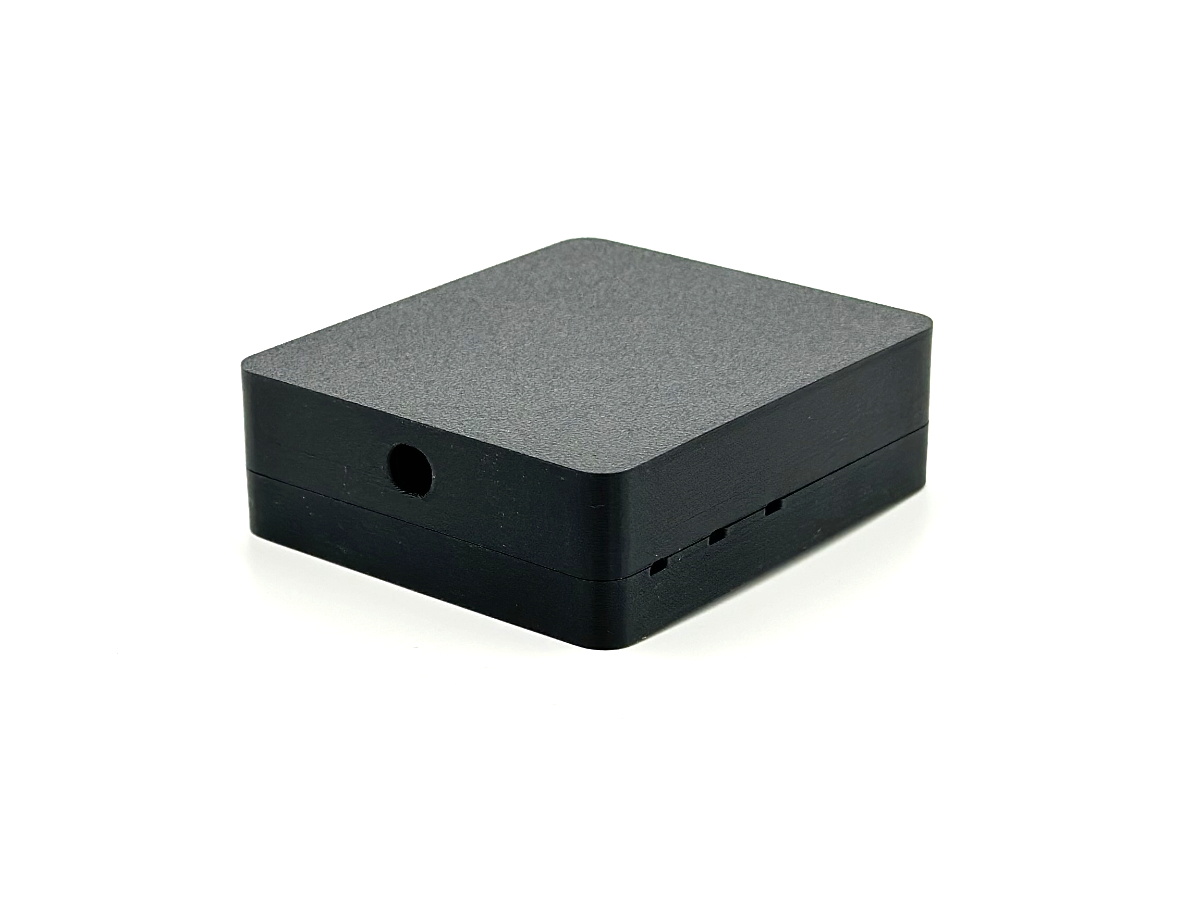

In comparisom to the desktop housing supplied with the Coordinator, the antenna is on the opposite side of the connections.
Converting the coordinator is easy:
Simply loosen the four screws at the bottom of the desktop housing, remove the circuit board, install the antenna adapter and light tunnels (LEDs) in the new housing using the supplied cod.m wrench, transfer the circuit board to the new housing and screw it in place.
Printed in PM PLA+ black filament on Prusa MK4.
If you want to print your own housing, you can find the print files for both variants on Printables: cod.m ZigBee Coordinator (CZC-1.0) cases 3D print files.
Includes

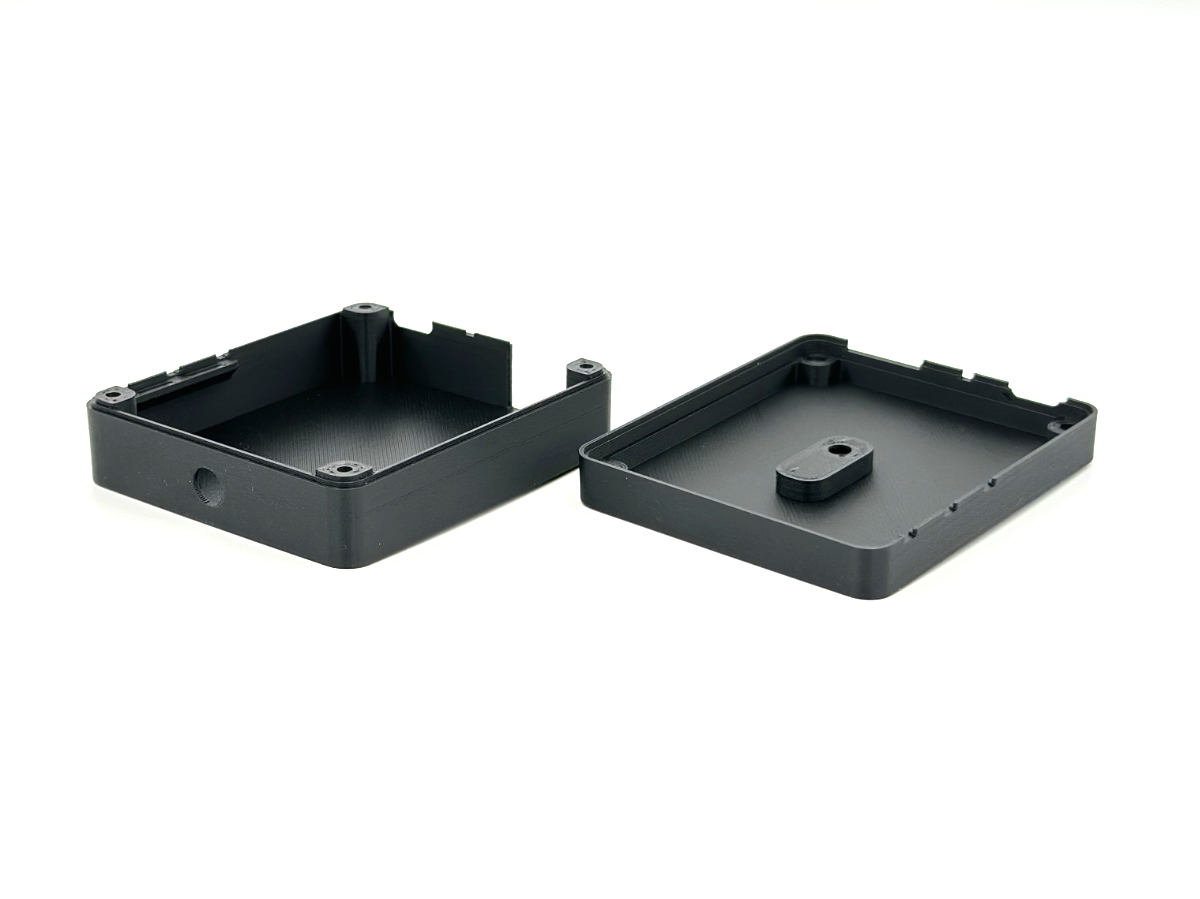

- 3D-printed upper part of the housing
- 3D-printed lower part of the housing
